Presenting: The latest carding innovation for the nonwovens industry – the Groz-Beckert InLine card clothing series.


Thanks to a new and patented manufacturing process, Groz-Beckert has developed a series of metallic card clothing that offers improved process reliability and thus a higher uptime of the card. At the same time, the new manufacturing process is in line with the company's principles of producing in an environmentally-friendly and resource-saving manner.

The special features of Groz-Beckert InLine card clothings at a glance:

  1. Controlled and very precise hardening of the wire teeth
  2. Completely scale-free card clothing without burrs
  3. Reduction of the rib height of interlocking wires to 1.3 mm

This results in the following advantages:

Increased service life of the metallic wires

The optimized hardening of the wire teeth reduces the risk of bending and the associated need for premature replacement. Thus, an increased service life of the metallic card clothing can be expected.

Consistent carding and high web quality

The process-reliable hardening of the teeth results in more uniform abrasion of the card clothing. This is to achieve consistent carding and high web quality.

Reduced run-in period and less chance of fiber loading

The scale-free card clothing without burrs is extremely fiber-friendly and does not change its character during the run-in phase. Therefore, the run-in phase is shortened. Furthermore, the chance of fibers loaded to carding wires is significantly reduced which may result in a lower cleaning frequency and consequently a shorter downtime of the card.

Shorter downtimes for mounting process

The lower the rib height, the safer the mounting process. Thanks to the reduced rib height of 1.3 mm and a faster mounting process, the Groz-Beckert InLine series impresses with shorter downtimes of the card.

For more information on the Groz-Beckert InLine sets, click here.

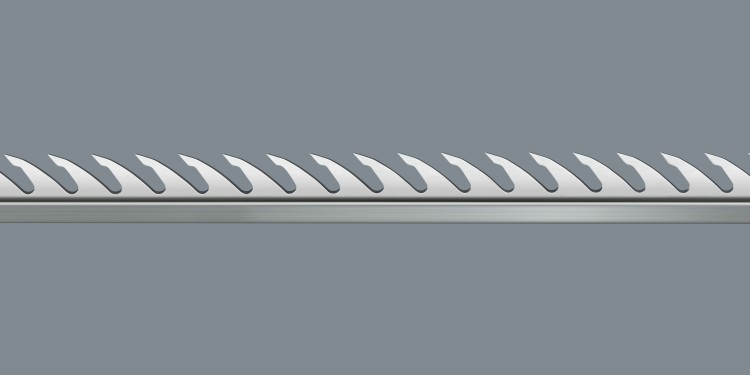

SiroLock™ plus as part of the Groz-Beckert InLine series

Based on the new production process of the Groz-Beckert InLine card clothing series and taking customer feedback into account, the SiroLock™ plus was developed as a successor of the SiroLock™ worker and doffer wire. The result is an optimal SiroLock™ plus product family that enables sophisticated specifications for every customer application.

The SiroLock™ plus wires also have the characteristics of the Groz-Beckert InLine series: a reduced rib height of the interlocking wires, a scale-free surface and, in particular, higher strength of the delicate wire teeth. The special tooth geometry of the SiroLock™ plus card clothing results in gentle and more effective fiber take-up, control and hand-over – even at the highest throughput rates.

As the first wire of the SiroLock™ plus product family, the SiroLock™ plus V28/250/40H40 SL+ Plattinium was released into the market.

This wire is used specifically for the production of hydroentangled nonwovens (spunlace webs) and fine needle felts (needlepunch applications).

Learn more about the SiroLock™ plus worker and doffer set here.


Below you will find the current overview of the available types of the Groz-Beckert InLine card clothing series:

Material number

P00000000287720

P00000000287719

P00000000318570

P00000000318571

P00000000318634

P00000000322285

P00000000318461

P00000000304161

P00000000318329

P00000000318633

P00000000319377

P00000000321739

P00000000302463

P00000000288083

Designation

Groz-Beckert InLine
P125/360/40H50 Plattinium

Groz-Beckert InLine
P125/420/40H50 Plattinium

Groz-Beckert InLine
V20/360/30H40 Plattinium

Groz-Beckert InLine
V24/300/15H33 Plattinium

Groz-Beckert InLine
V24/300/15H33 Plattinium

Groz-Beckert InLine
V16/420/15H33 Plattinium

Groz-Beckert InLine
V20/360/37H48 R3 Plattinium

Groz-Beckert InLine
P100/360/40H50 Plattinium

Groz-Beckert InLine
V24/360/40H48 Plattinium

Groz-Beckert InLine
V20/300/20H33 Plattinium

Groz-Beckert InLine
V20/250/40H40 R3 Plattinium

Groz-Beckert InLine
V24/250/35H40 R3 Plattinium

Groz-Beckert InLine
P080/230/40H40 R3 Plattinium

Groz-Beckert InLine
V22/250/18H30 Plattinium


Material number

P00000000316711

P00000000316602

P00000000316712

P00000000316743

P00000000316713

P00000000316951

Designation

Groz-Beckert InLine SiroLock™ plus
V28/250/40H40 SL+ Plattinium

Groz-Beckert InLine SiroLock™ plus
P080/250/40H40 SL+ Plattinium

Groz-Beckert InLine SiroLock™ plus
V30/250/40H40 SL+ Plattinium

Groz-Beckert InLine SiroLock™ plus
V24/360/40H48 SL+ Plattinium

Groz-Beckert InLine SiroLock™ plus
V24/250/40H40 SL+ Plattinium

Groz-Beckert InLine SiroLock™ plus
V16/420/40H45 SL+ Plattinium
